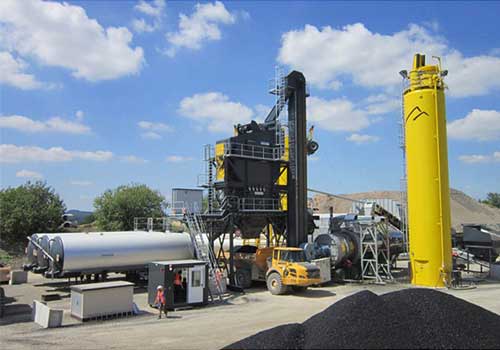

The Features of Mobile Asphalt Mixing Plant:
1. Integrated design of batch type drying drum and mixing drum reduce investment cost for customer;
2. Simple structure, easy to handle: drying while drum rotates in the counter-clockwise direction (from burner), discharging while drum rotates in the clockwise direction (from burner), and the wind is swirled in the center of the drum;
3. PLC control, touch screen with free auto/manual transfer are available for this kind of concrete mixing equipment.
4. Movable chassis structure allows a fast as well as easy transport and installation.
5. Coal and oil burner are available upon customer’s request.

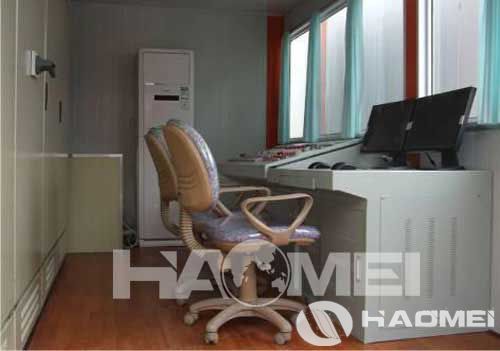

Asphalt mixture control system:
Strong-current cabinet:
1 Adopt the GGD cabinet conforming to the national standard
2 Source electric control units from Siemens
3 Orderly wiring, clear markers and convenient overhaul

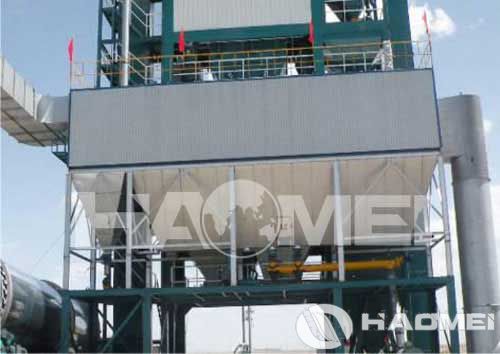

Environmental dust removal system
1 The bag filter from DuPont: NOMEX needled felt
2 Electronic pulse structure
3 Emission concentration of dust less than 50mg/Nm3

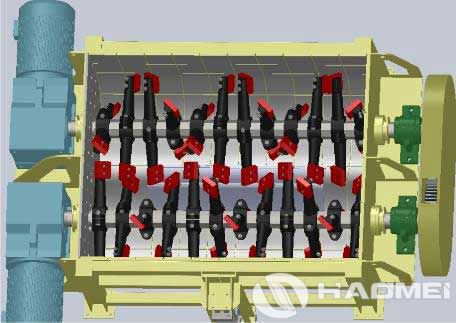

Dual-motor driven agitator:
1 Wear resistance blade
2 A synchromesh gear
3 Horizontal Double-shaft

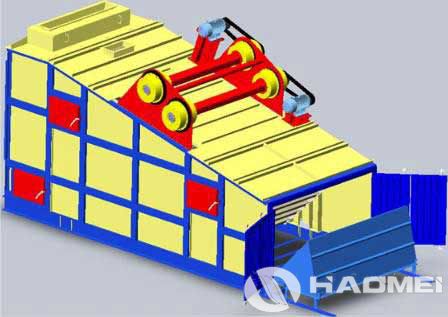

High-efficiency vibration screen
1 Driven by dual motors
2 Convenient maintenance
3 Vibrating shaft installed outside the housing of the vibrating screen
4 Movable slide board
The Technical Parameters of Mobile Asphalt Mixing Plant:
| Type | LBY2000 | LBY1000 |
| Production Capacity(t/h) | 160 | 80 |
| Production Capacity(t/h) | 440 | 230 |
| Aggregate | +0.5 | +0.5 |
| Powder | +0.25 | +0.25 |
| Bitumen | +0.20 | +0.20 |
| Way of dust filter | Bag dust filter | Bag dust filter |
| Dust emission | ≤100 | ≤100 |
| Storage Bin Type | Side-type | Side-type |
| The Volume Of Storage Bin(T) | 100 | 60 |
