YHZS35 Mobile Batching Plant

Condition:
Brand new
Minimum Order Quantity:
One set
Guarantee period:
12 months

Introduction of YHZS35 mobile batching plant


The YHZS35 mobile batching plant is composed of material supply, weighing,mixing and electric control system, with the optimized design of the concrete batching plant, it can be overall transferred and moved by the towing vehicle.

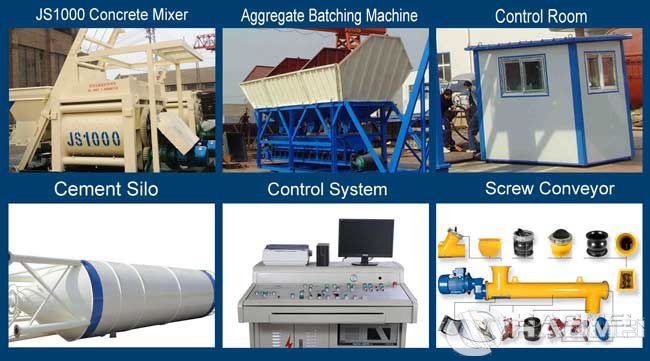

Hauling mobile concrete mixing plant with running system is special construction concrete equipment designed independently by our company. It can be installed quickly on site. This batching plant integrate mixer, batching system, running system, feeding system, weighing system, cement silo, screw conveyor and all the necessary equipment into together, installing on a transport chassis.

YHZS35 Mobile Concrete Batching Plant

Specification

Value

Productivity in theory(m3/h)

35

Weighing scale Concrete(Kg)

2500

Weighing scale Cement(Kg)

600

Weighing scale Water(kw)

300

Weighing scale Liquid addictive(kg)

20

Overall power(KW)

About 70

Power source(V/ HZ)

380/50

Discharging height(M)

3.8

Overall weight(T)

17 (Cement Silo not included)

Trail speed(km/h)

≤40

Specification(LxWxH) During work(M)

17.3x3.4x7.41m

During transportation(M)

17x2.4x4.34m

Advantages of YHZS35 mobile batching plant

1. Compact structure and complete function

Plant of this model is a combination of storing, weighing, transporting, mixing and controlling.

It has featured of compact structure and complete function.

2. Convenient movement

Adopt pulling type, special structure enables convenient movement.

3. Quick installation

Ready to run without normal foundation and commissioning, which can save installation and commissioning time.


Application of YHZS35 mobile concrete plant

YHZS35 mobile mixing station is widely used in larger than medium-sized mobile projects, like water and electricity, roads, bridges, airports, etc.


About Haomei

Haomei machinery equipment co.,ltd is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality concrete batching plant, mobile concrete batching plant, concrete pump, concrete truck mixer, asphalt mixing plant etc.
