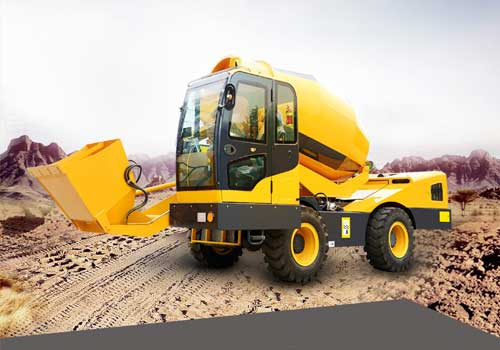

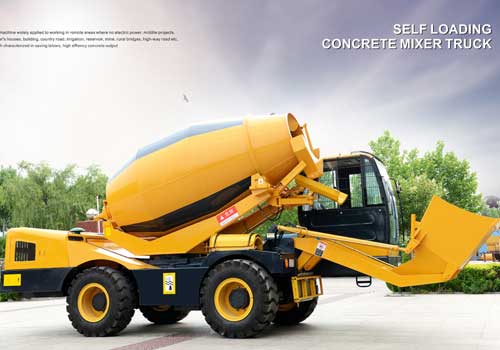

Self Loading Concrete Mixer Truck For 2.0 CUM

Drum Capacity	3.0m³
Concrete Output	2.0m³
Loading Ratio	76%
Rotary Drum	articuated steering
Metering	Electronic weighing system (options)
Production Capacity	4batches in an hour.10 cubic meters per hour
ENGINE	Yuchai, diesel, water cooling, 4 cylinders.2, 200 revolutions per minute, rated power 78KW
Transmission Way	Full hydraulic drive. 4wheel drive and 2 turns. All the power comes from hydraulic oil, including walking 4X4.
Climbing Ability	16.7%
Speed Range	Low speed 0-7.2 km/h, hight speed 0-25Km/h
CAB	Ultra wide deluxe cab . ROPS type
Hydraulic system	Open feed, two gear pump participate in action
Joystick	A four-way hydraulic polot with an electric control button controls the bucket.
Bucket	550L, hydraulic gate
Chute	Equipped with two removable shaft pins to increse the discharge length.
Water Supply System	Self-priming hydraulic drive pump/electonic water flow monitor/high pressure washer (optional)
Brake	inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return roud. Negative pressure type stop brake, the front bridge is equipped with inner hub.
Turn	Hydraulic steering, rear wheel steering.
Tyre	16/70-20PR16 tires
Power System	24V
OIL TANK/water tank	2 x220L water tank. Diesel tank: 118 liters. Hydraulic tank:98 liters.
Weight	6500KG
LWH	6030MM2180MM2250MM
Wheelbase	1.8M

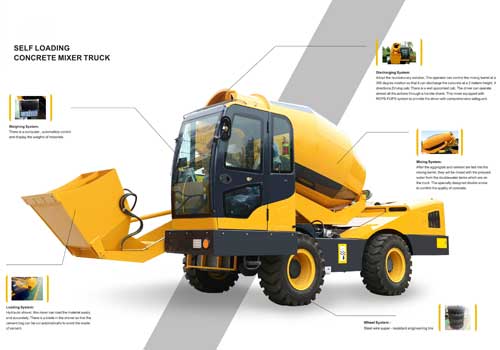

Weighing System:

There is a computer , automaticly comtrol and display the weights of materials.

Loading System:

Hydraulic shovel , this mixer can load the material easily and accurately . There is a blade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement.

Discharging System:

Adopt the revolutionary solution . The operator can control the mixing barrel at a 300 degree rotation so that it can discharge the concrete at a 2 meters height , 4directions . Driving cab: There is a well appointed cab . The driver can operate almost all the actions through a handle shank. This mixer equipped with ROPS-FOPS system to provide the driver with comprehensive safeguard.

Mixing System:

After the aggregate and cement are fed into the mixing barrel , they will be mixed with the pressed water from the doublewater tanks whick are on the truck . The specially designed double screw to confirm the quality of concrete.
