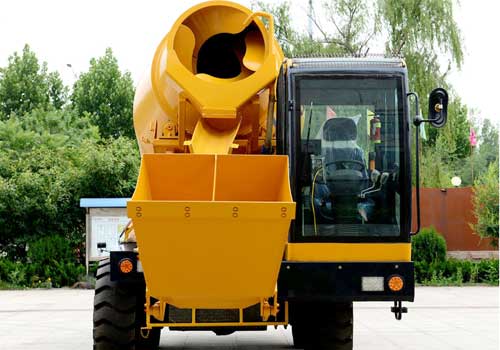

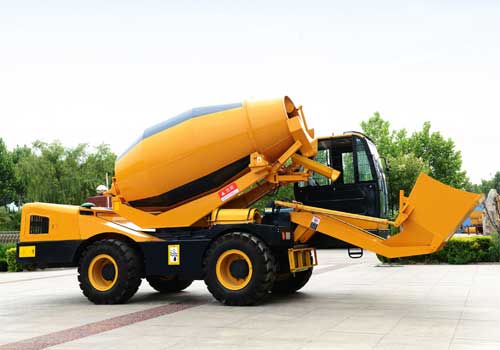

Self Loading Concrete Mixer Truck For 4.0 CUM

Condition:
Brand new
Minimum Order Quantity:
One set
Guarantee period:
12 months
Drum Capacity
5.5m3
Concrete Output4m3
Loading Ratio76%
Rotary DrumDischarge mouth height 1.8 meters. Level turn 290°(options)
MeteringElectronic weighing system (options)
Production Capacity4batches in an hour. 16 cubic meters per hour
ENGINEYuchai YC4A125Z, diesel, water cooling, 4 cylinders.2, 200 revolutions per minute, rated power 92KW
Transmission Way
Full hydraulic drive. 4wheel drive and 2 turns. All the power comes from hydraulic oil, including walking 4X4.
Climbing Ability30%
Speed RangeLow speed 0-25 km/h, high speed 0-45km/h.
CAB
Ultra wide deluxe cab . ROPS type
Hydraulic systemOpen feed, two gear pump participate in action
JoystickA four-way hydraulic polot with an electric control button controls the bucket.
Bucket
650L, hydraulic gate
ChuteEquipped with two removable shaft pins to increse the discharge length.
Water Supply System
Self-priming hydraulic drive pump/electonic water flow monitor/high pressure washer (optional)
Brakeinner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return roud. Negative pressure type stop brake, the front bridge is equipped with inner hub.
TurnHydraulic steering, rear wheel steering.
Tyre16/70-20 wire tires
Power System24V
OIL TANK/water tank2 x210L water tank. Diesel tank: 125 liters. Hydraulic tank:130 liters.
Weight7600KG
L*W*H7500MM*2700MM*3380MM
Wheelbase2.35M

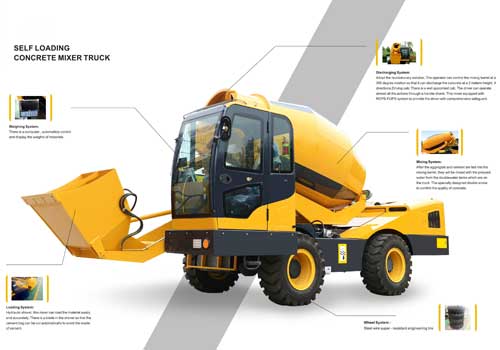

Weighing System:

There is a computer , automaticly comtrol and display the weights of materials.


Loading System:

Hydraulic shovel , this mixer can load the material easily and accurately . There is a blade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement.


Discharging System:

Adopt the revolutionary solution . The operator can control the mixing barrel at a 300 degree rotation so that it can discharge the concrete at a 2 meters height , 4directions . Driving cab: There is a well appointed cab . The driver can operate almost all the actions through a handle shank. This mixer equipped with ROPS-FOPS system to provide the driver with comprehensive safeguard.

Mixing System:

After the aggregate and cement are fed into the mixing barrel , they will be mixed with the pressed water from the doublewater tanks whick are on the truck . The specially designed double screw to confirm the quality of concrete.


Wheel System:

Steel wire super - resistant engineering tire .
